XunRuiCMS v4.7.1 - Stored XSS via SVG File Upload

XunRuiCMS v4.7.1 - Stored XSS via SVG File Upload

Vulnerability Description

A stored Cross-Site Scripting (XSS) vulnerability has been discovered in XunRuiCMS version 4.7.1. The vulnerability exists due to insufficient validation of SVG file uploads in the dayrui/Fcms/Library/Upload.php component, allowing attackers to inject malicious JavaScript code that executes when the uploaded file is viewed.

Affected Product

  • Product: XunRuiCMS
  • Version: 4.7.1
  • Component: dayrui/Fcms/Library/Upload.php (File Upload Functionality)
  • CWE: CWE-79: Improper Neutralization of Input During Web Page Generation (‘Cross-site Scripting’)

Technical Details

I built XunRuiCMS locally using the source code from GitHub. Here is the source code address:

https://github.com/dayrui/xunruicms

This is the latest XunRuiCMS v4.7.1 version, which I deployed locally using PHPStudy at http://xunrui.local/admin0d8821d43d68.php

CMS Login Page

During code analysis, I discovered that the application’s upload component (dayrui/Fcms/Library/Upload.php) allows SVG image uploads. While the system filters out the <script> tag, it does not properly sanitize other potential XSS vectors within SVG files, such as event handlers like onerror.

Code Filtering

The vulnerability occurs because the upload validation routine only checks for explicit <script> tags but fails to validate other JavaScript execution vectors commonly found in SVG files, such as event handlers and embedded JavaScript URIs.

Proof of Concept (PoC)

The following SVG code can be used to bypass the filtering mechanism in the Upload.php component:

1
2
3
<svg xmlns="http://www.w3.org/2000/svg">
  <image href="x" onerror="alert('XSS Test')" />
</svg>

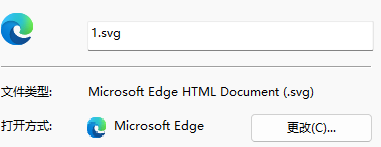

Save the code above as an SVG image file:

SVG File

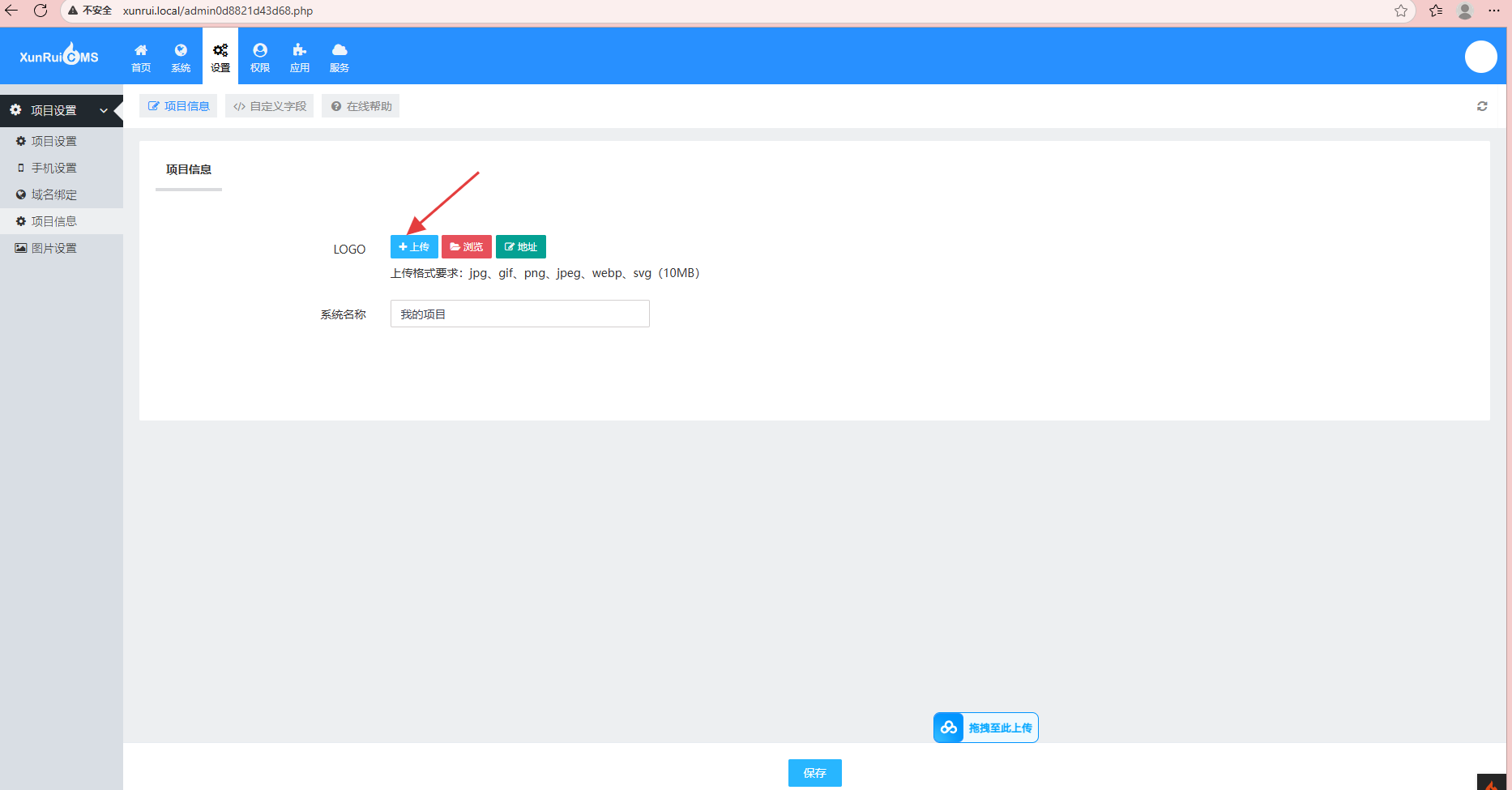

The vulnerability can be exploited through the image upload functionality:

Vulnerability Point

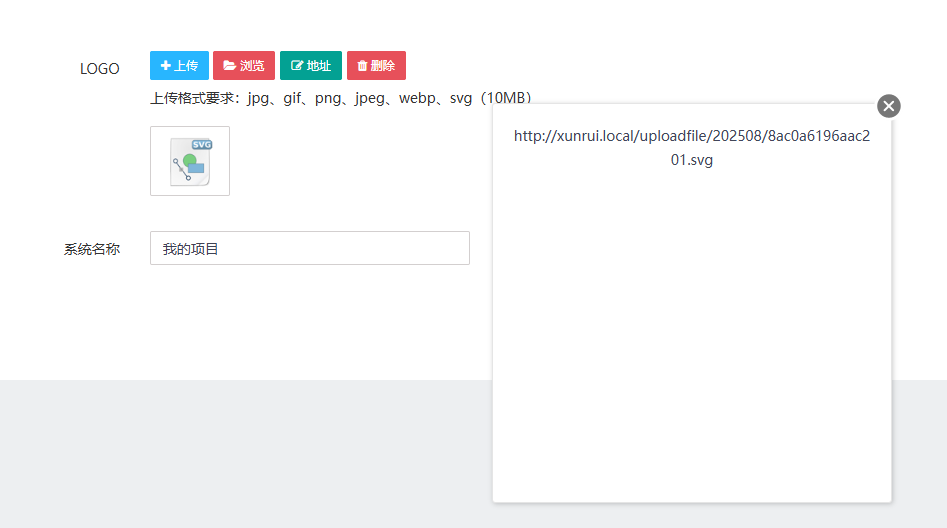

After uploading the malicious SVG file, it is successfully stored on the server:

Upload Success

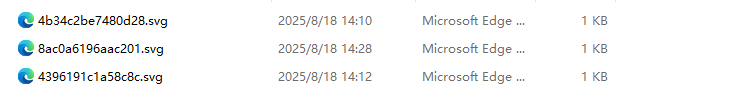

The uploaded image can also be seen in the local project:

Image in Project

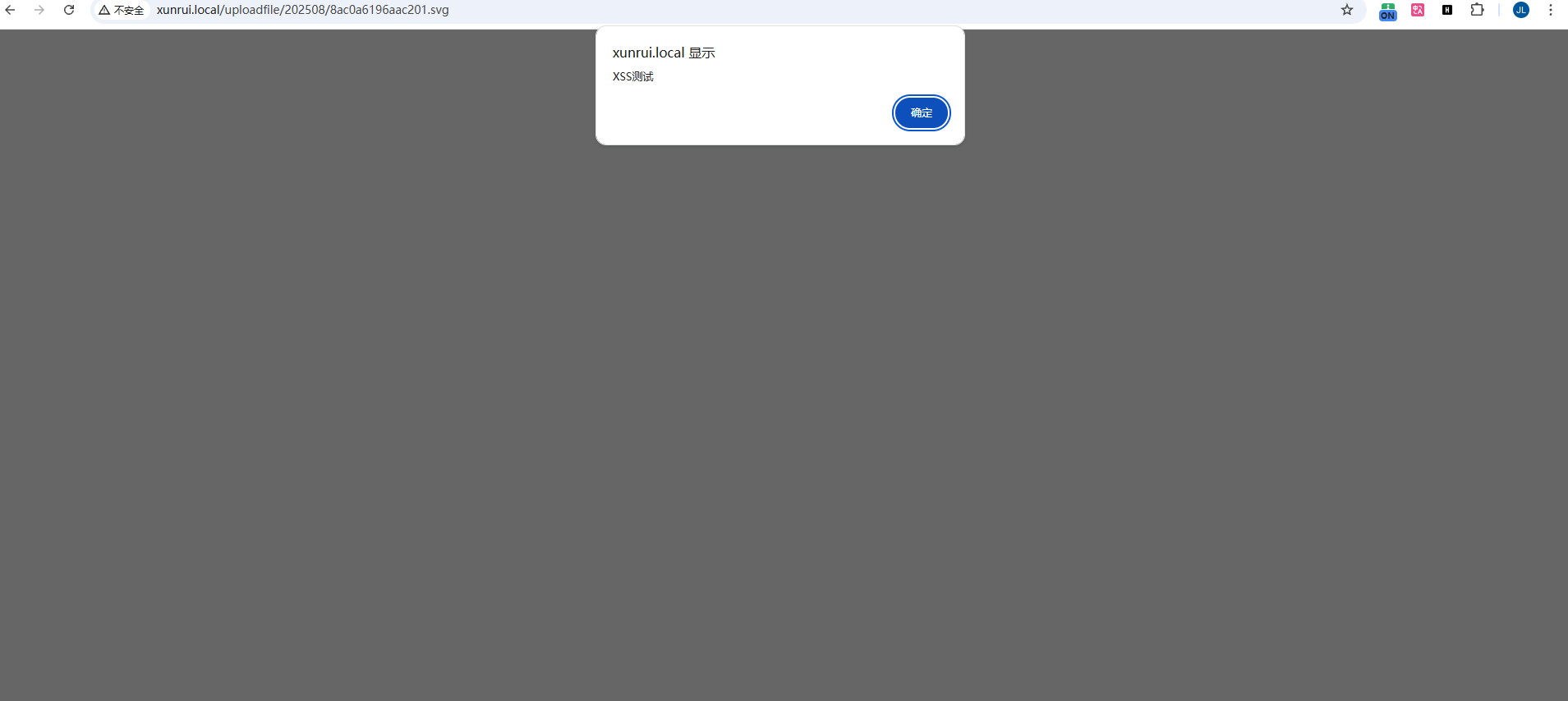

When accessing the uploaded SVG file, the JavaScript code is executed in the victim’s browser:

XSS Execution

Impact

This vulnerability allows attackers to:

  1. Execute arbitrary JavaScript code in the context of other users’ browsers
  2. Steal sensitive information such as session cookies
  3. Perform actions on behalf of the victim
  4. Potentially escalate to more severe attacks

Vulnerable Code Analysis

The vulnerability exists in the dayrui/Fcms/Library/Upload.php component, which fails to properly sanitize SVG files before accepting them for upload. The component only checks for explicit <script> tags but does not handle other JavaScript execution vectors like event handlers (onerror, onload, etc.) that can be used within SVG elements.

Remediation

To fix this vulnerability, the application should:

  1. Implement proper validation and sanitization of SVG files in the Upload.php component
  2. Consider using a Content Security Policy (CSP) to prevent execution of inline scripts
  3. Convert SVG files to other image formats (like PNG) during the upload process
  4. Apply SVG-specific sanitization to remove potentially dangerous attributes and elements
  5. Update the validation routine to check for event handlers and other JavaScript execution vectors

Timeline

  • 2025-08-18: Vulnerability discovered
  • 2025-08-18: Documentation and proof of concept created
  • [Future Date]: Vulnerability reported to vendor
  • [Future Date]: CVE assigned

References

  1. CWE-79: Improper Neutralization of Input During Web Page Generation (‘Cross-site Scripting’)
  2. OWASP XSS Prevention Cheat Sheet
  3. SVG Security Considerations
  4. XunRuiCMS GitHub Repository
